Please click the photo for more information.※左右にスワイプ←→各項目が閲覧できます。| Image | Series | Dimension | Composition | Total Resistance Value | Rating | Switch Rating | |
|---|---|---|---|---|---|---|---|
 |

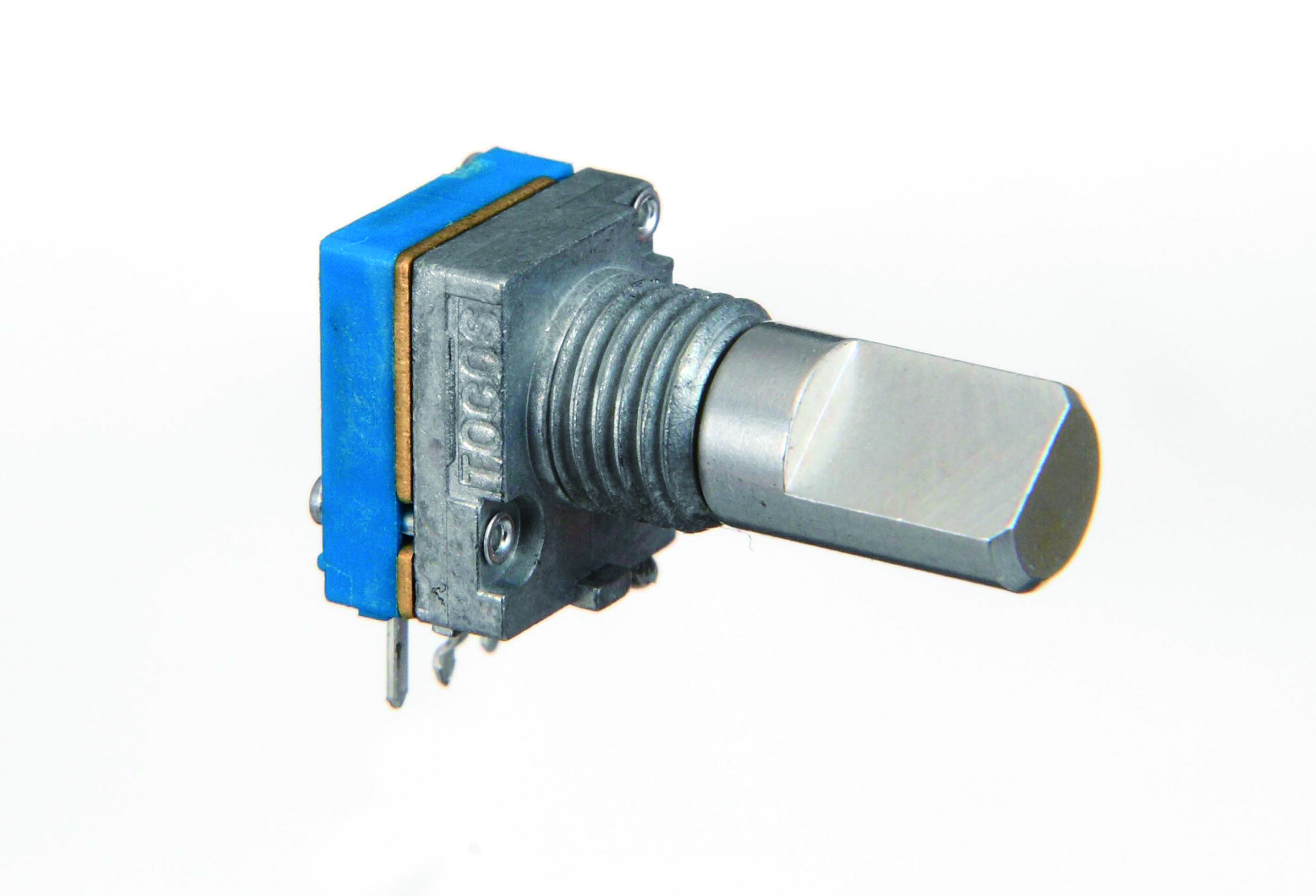

TP96N00 | 9mm sq. | Single-shaft, Single-unit | B１kΩ-500kΩ | 0.05W at +50℃ 0W at+70℃ | - | |
 |
TP96G00 | 9mm sq. | Single-shaft, Dual-unit | B１kΩ-500kΩ | 0.05W at +50℃ 0W at+70℃ | - | |
 |
TP96T00 | 9mm sq. | Single-shaft, 3-unit | B１kΩ-500kΩ | 0.05W at +50℃ 0W at+70℃ | - | |
 |
TP96Q00 | 9mm sq. | Single-shaft, 4-unit | B１kΩ-500kΩ | 0.05W at +50℃ 0W at+70℃ | - | |
 |
TP96P00 | 9mm sq. | Single-shaft, 6-unit | B１kΩ-500kΩ | 0.05W at +50℃ 0W at+70℃ | - | |
 |
TP96E00 | 9mm sq. | Single-shaft, 8-unit | B１kΩ-500kΩ | 0.05W at +50℃ 0W at+70℃ | - | |
 |

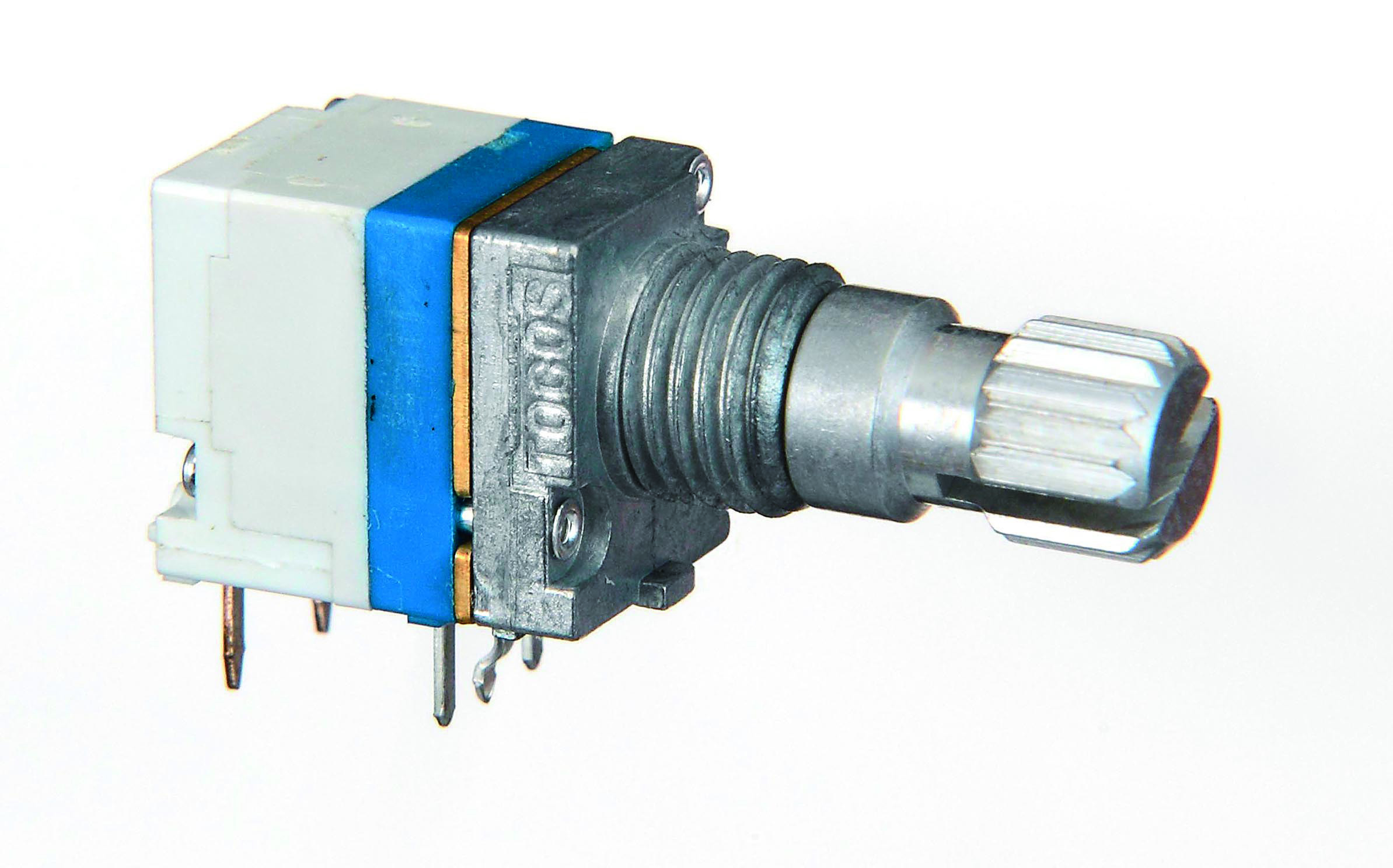

TP96N00N | 9mm sq. | Single-shaft, Single-unit Ro.SW | B１kΩ-500kΩ | 0.05W at +50℃ 0W at+70℃ | DC16V-3A | |
 |
TP96G00N | 9mm sq. | Single-shaft, Dual-unit Ro.SW | B１kΩ-500kΩ | 0.05W at +50℃ 0W at+70℃ | DC16V-3A | |
 |
TP96D00 | 9mm sq. | Dual-shaft, Dual-unit | B１kΩ-500kΩ | 0.05W at +50℃ 0W at+70℃ | - | |
 |
TP96F00 | 9mm sq. | Dual-shaft, 3-unit | B１kΩ-500kΩ | 0.05W at +50℃ 0W at+70℃ | - | |
 |
TP96H00 | 9mm sq. | Dual-shaft, 4-unit | B１kΩ-500kΩ | 0.05W at +50℃ 0W at+70℃ | - | |
 |
TP96D00N | 9mm sq. | Dual-shaft, Dual-unit Ro.SW | B１kΩ-500kΩ | 0.05W at +50℃ 0W at+70℃ | DC16V-3A | |
 |
TP96H00N | 9mm sq. | Dual-shaft, 4-unit Ro.SW | B１kΩ-500kΩ | 0.05W at +50℃ 0W at+70℃ | DC16V-3A | |
 |
TP96G00A | 9mm sq. | Single-shaft, Dual-unit | B１kΩ-500kΩ | 0.05W at +50℃ 0W at+70℃ | DC12V-0.5A | |
 |
TP96N00A | 9mm sq. | Single-shaft, Single-unit Push-On SW | B１kΩ-500kΩ | 0.05W at +50℃ 0W at+70℃ | DC12V-0.5A | |
 |
RH96N74 | 9mm sq. | Single-shaft, Single-unit | B１kΩ-500kΩ | 0.05W at +50℃ 0W at+70℃ | - | |
 |
RH96D190 | 9mm sq. | Dual-shaft, Dual-unit Vertical | B１kΩ-500kΩ | 0.05W at +50℃ 0W at+70℃ | - | |
 |
TP96G00Z | 9mm sq. | Single-shaft, Dual-unit Push-lock | B１kΩ-500kΩ | 0.05W at +50℃ 0W at+70℃ | - | |
 |
TP96W00L | 9mm sq. | Single-shaft, 4-unit Pull-lock | B１kΩ-500kΩ | 0.05W at +50℃ 0W at+70℃ | - | |
 |
TP96V00NL | 9mm sq. | Single-shaft, 3-unit Pull-lock/Ro.SW | B１kΩ-500kΩ | 0.05W at +50℃ 0W at+70℃ | - | |
 |
TP98J00NL | 9mm sq. | Dual-shaft, 5-unit Pull-lock/Ro.SW | B１kΩ-500kΩ | 0.05W at +50℃ 0W at+70℃ | - | |
 |
TP96D00X | 9mm sq. | Dual-shaft, Dual-unit Push/Push SW | B１kΩ-500kΩ | 0.05W at +50℃ 0W at+70℃ | DC16V-3A |
